PMO WAVE75

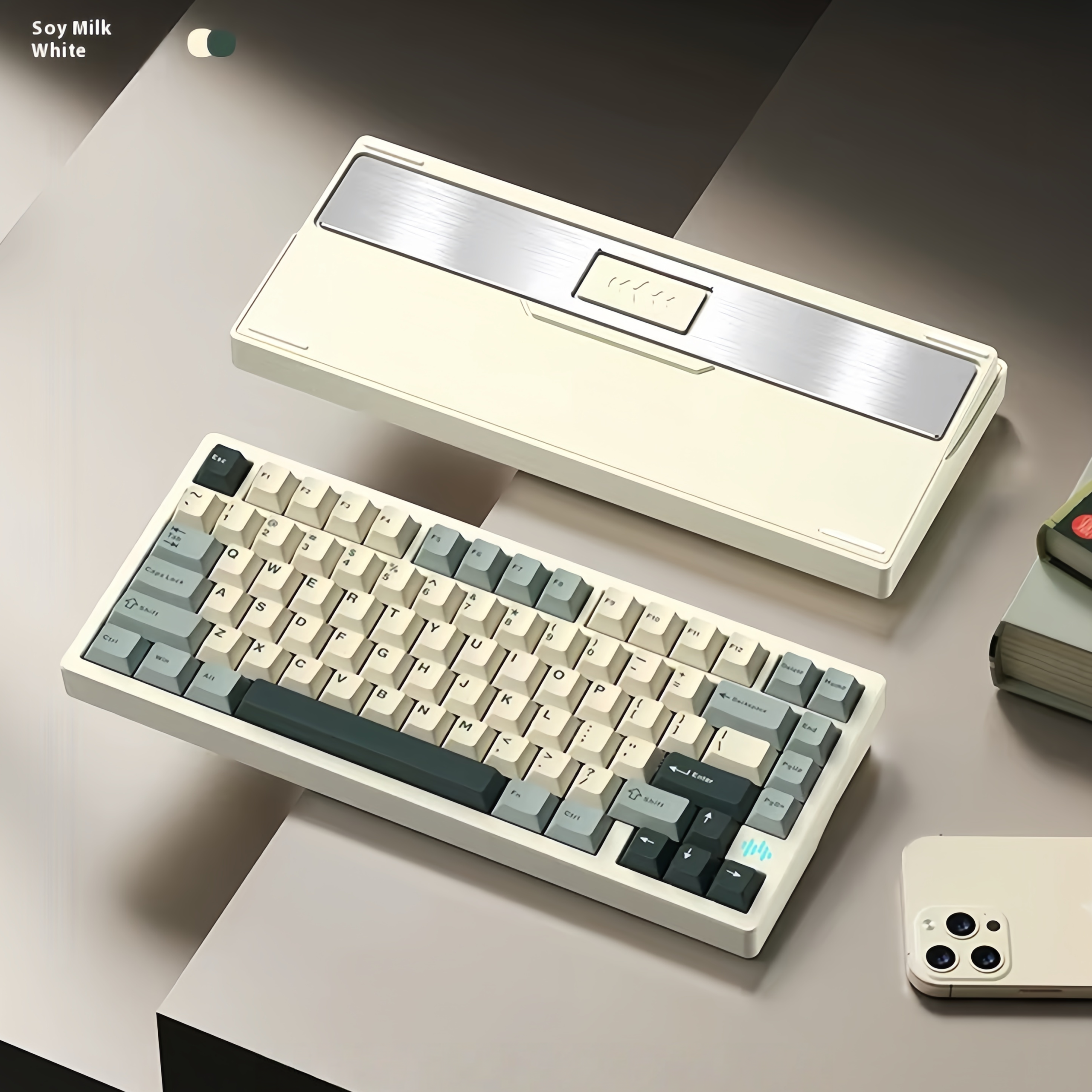

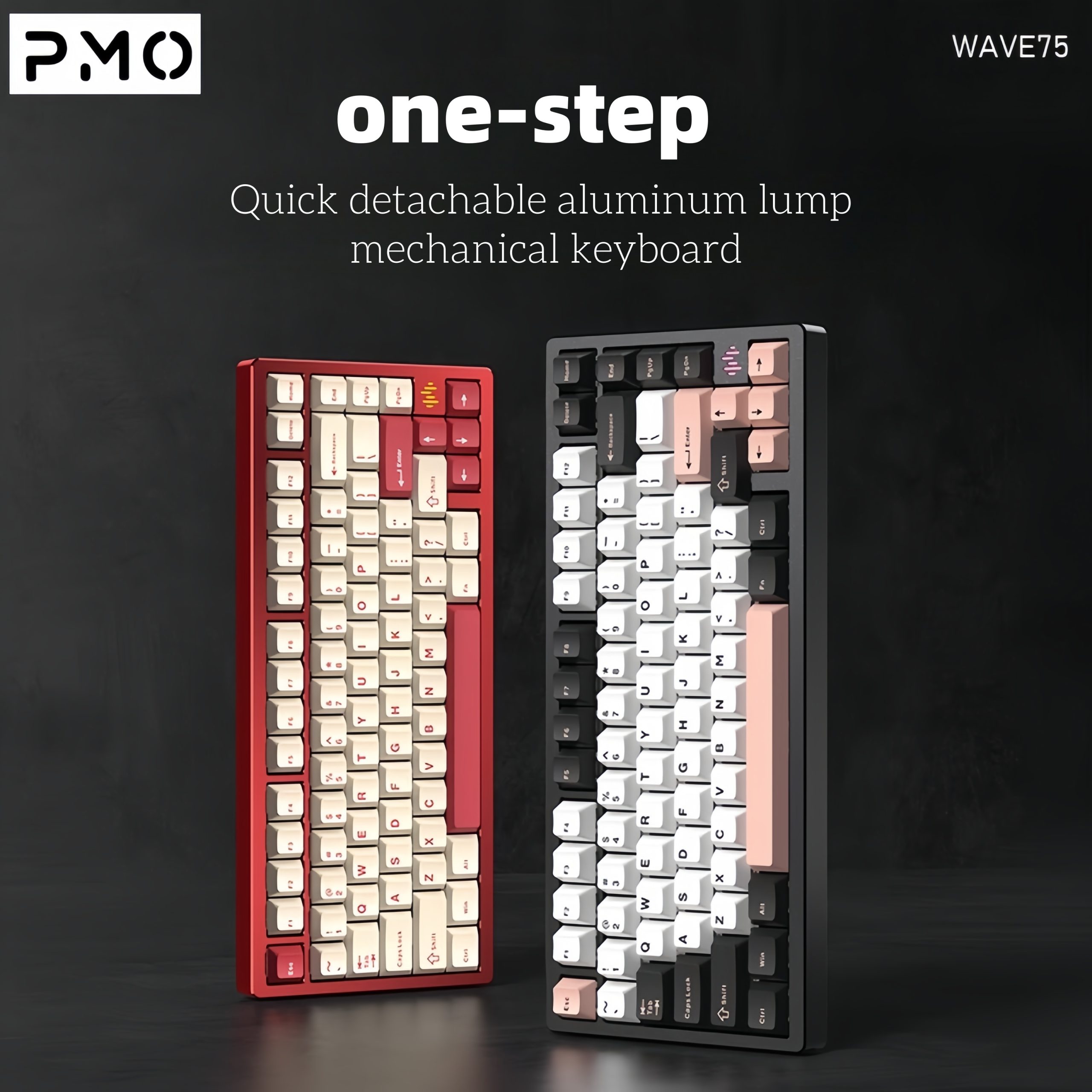

PMO WAVE75 aluminum pile mechanical keyboard, wireless Bluetooth quick release, customized, specifically designed for computer esports games

Price range: $99.00 through $129.00

Simple Testimonials

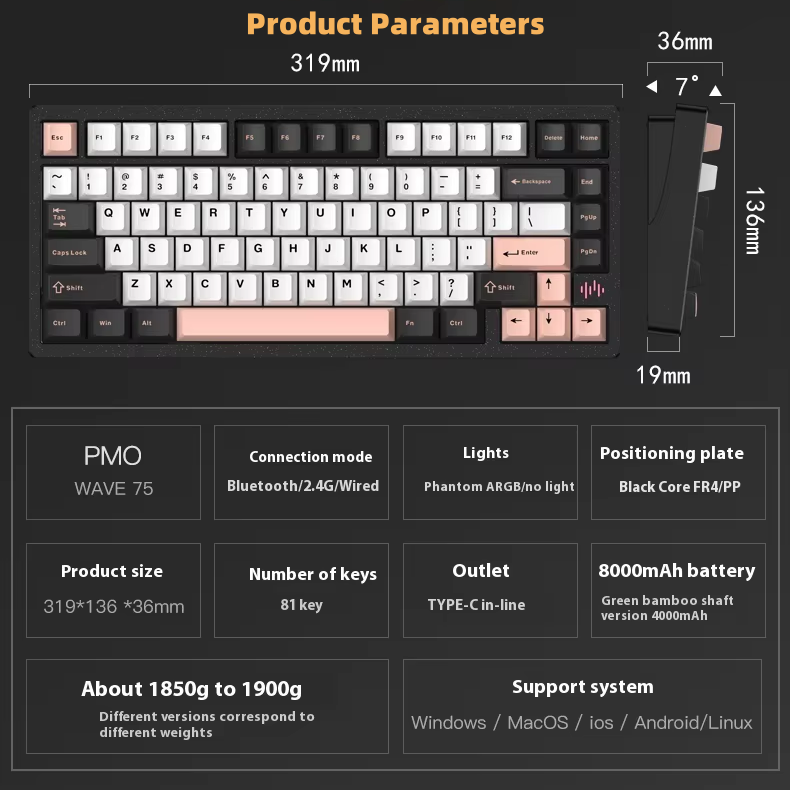

Brand: PMO

Model: WAVE75

Product size: 319 * 136 * 36mm

Connection mode: Bluetooth/2.4G/wired

Number of keys: 81 keys

Weight: Approximately 1850g to 1900g

Lighting: Colorful ARGB/No Light

Outgoing port: TYPE-C direct insertion type

Positioning board: Black core FR4/PP

Battery: 8000mAh battery/Green bamboo switch version 4000mAh

Supported systems: Windows/MacOS/iOS/Android/Linux

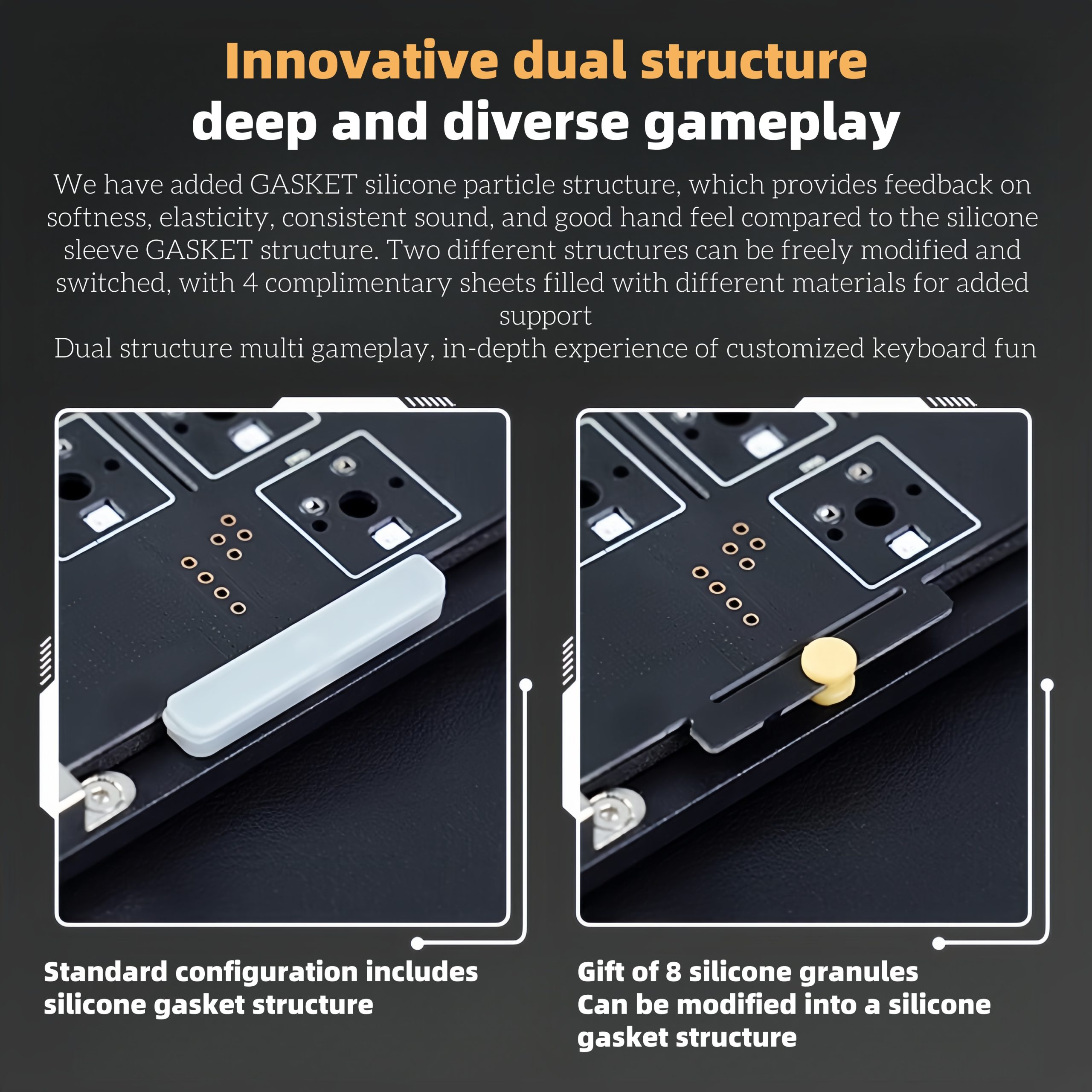

Double structure
multi-play method

This high-precision CNC-machined quick-release system enables tool-free disassembly in just 15 seconds. Integrated magnetic contact pins ensure secure alignment and instant electrical connectivity, ideal for rapid maintenance or modular setups. The robust design combines durability with effortless operation.

WAVE75 Configuration Parameters

Customize your keyboard with different parameter settings. Multiple color and material options ensure optimal compatibility for different applications. Tailored performance according to your exact needs.

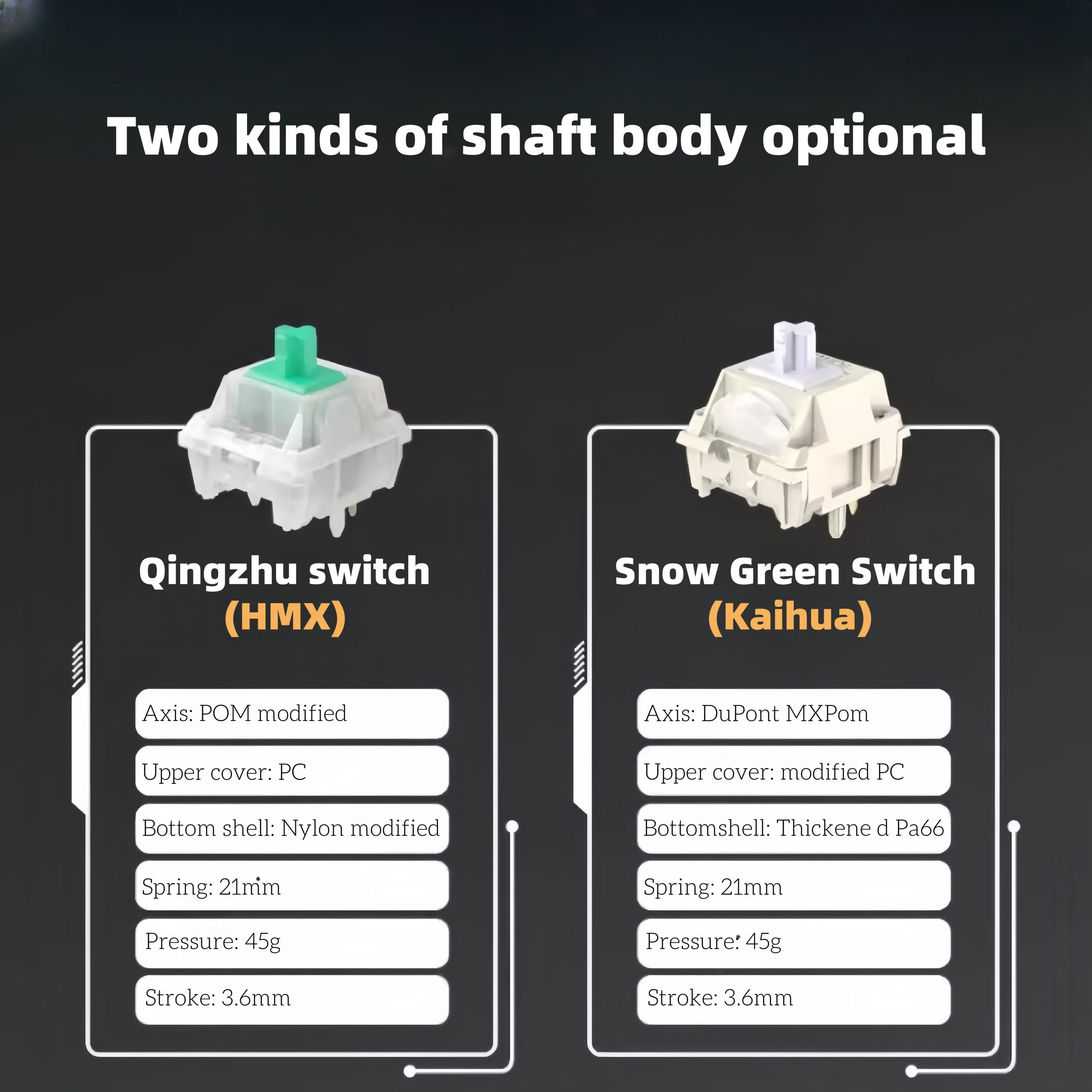

Two kinds of shaft
body optional

Two different shaft configurations, customizable according to personal preferences and needs

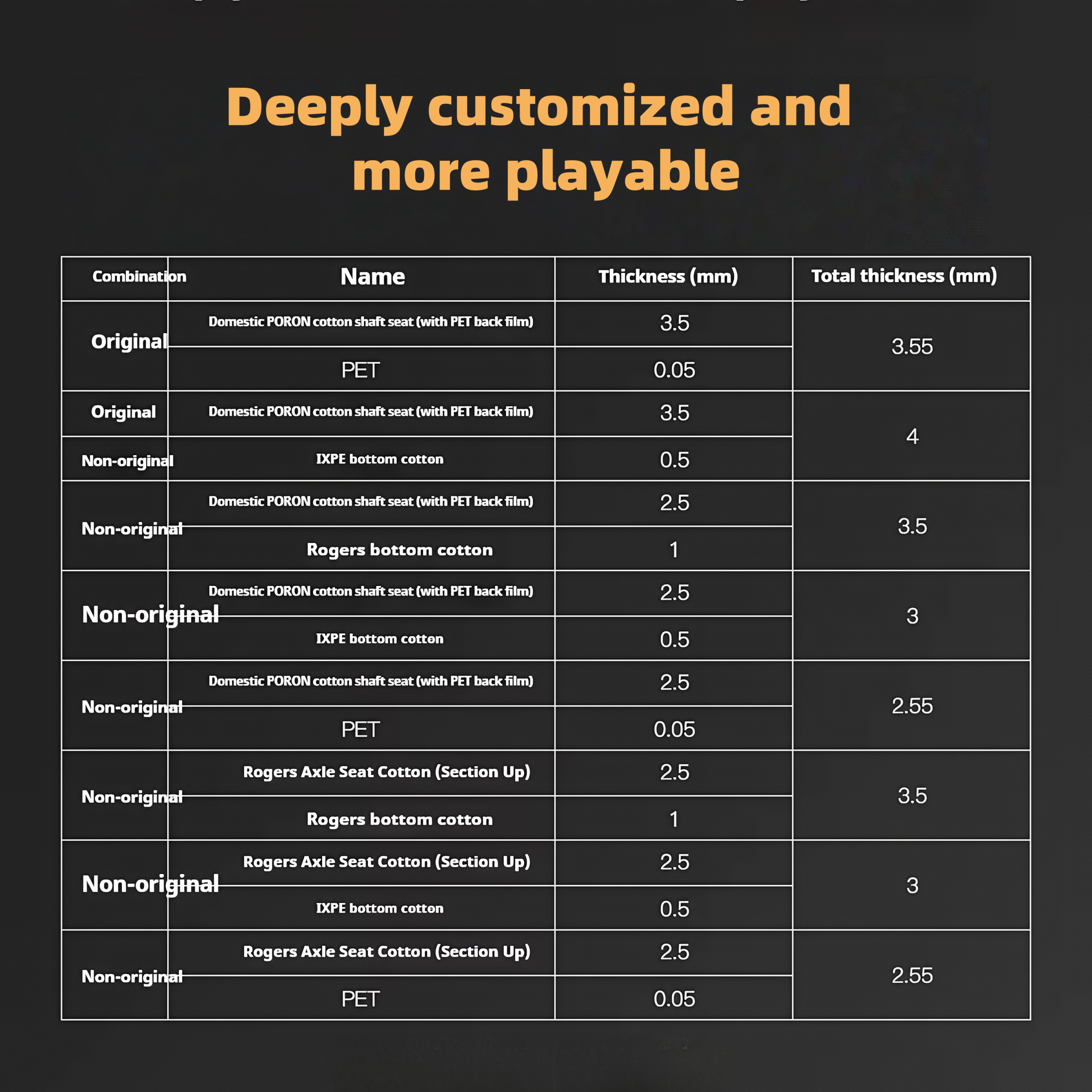

Deeply customized and
more playable

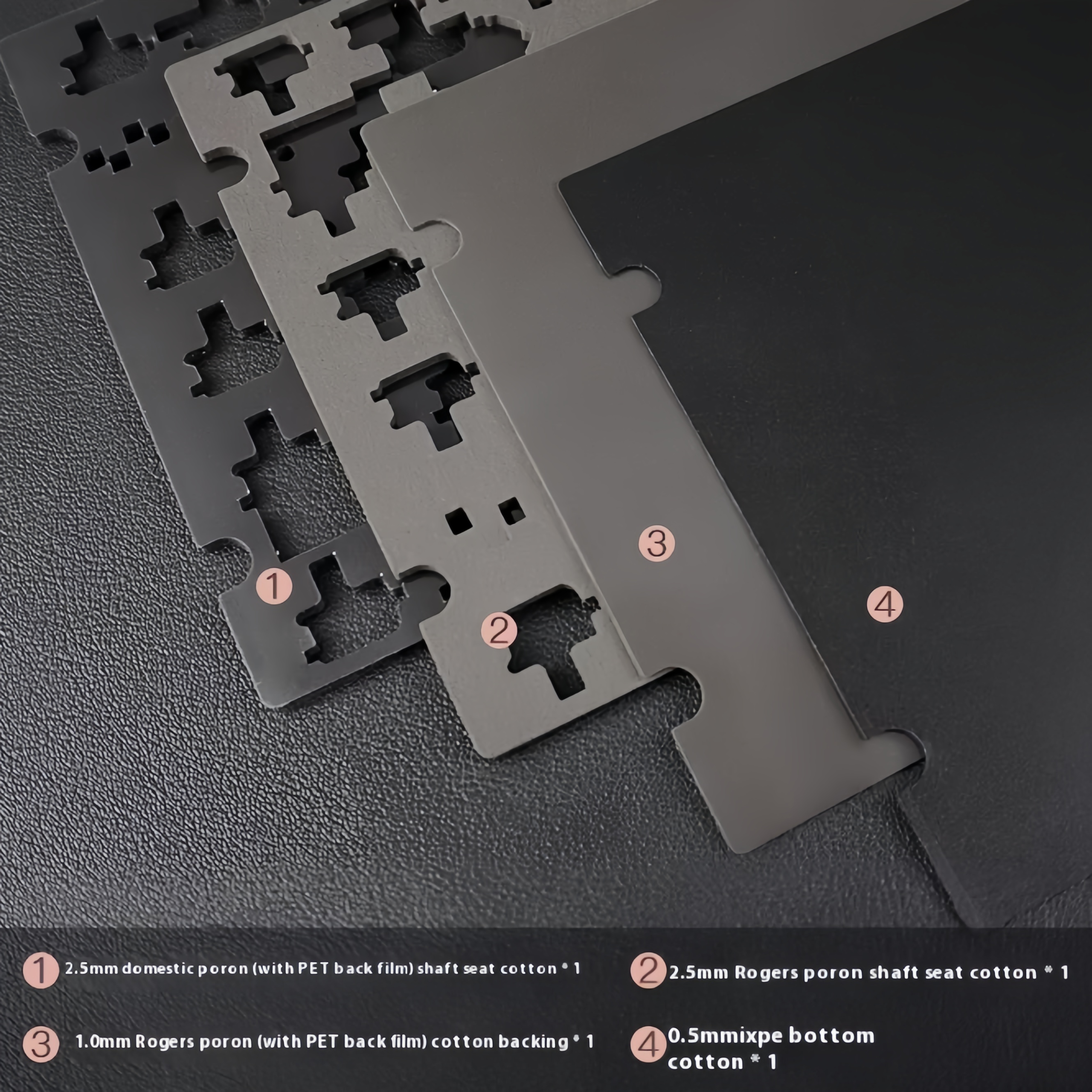

Under the standard sound package, WAVE75 is additionally given (4 sheets of cotton filled with differentmaterial thicknesses).Players can mix up to eight kinds of sound play bottom cotton combinations,
To meet the players of all kinds of collocation assembly, getdifferent sound performance

Deeply Customized And
More Playable

The keyboard is made of silicone sleeve gasket,3.5mmporon base cotton, the overall hand feeling is hard,the sound is pure, and the non-mainstream package mahjong sound can be used to adjust the hand feelinghardness and gasket structure (silicone grain/silicone bean) according to personal preference.

Upgrade the upper
cover design

The new optimization upgrade reduces the thickness of the "partition" in the areabetween the F area and the digital area, making it more quickly separated from theheight of the keycap after quick disassembly.Let disassembly more peace of mind.
(The design is optimized, In the case ofF area, the angle or direction of force for disassembly andassembly of the upper shell
When the opening and closing angles of the buckle are uneven due toinconsistency, it is possible not to step on the key cap, leaving scratches on thekey cap, etc,) At the same time, 6 new grooves on the "beam" around the innerframe are filled with cotton for shock absorption to reduce quick disassemblyand collision

Side black large silicone limit

Innovative research and development, through the large siliconelimit design, effectivelyreduce the displacement of the inner tankto better provide a clear sense of touch and feedback.

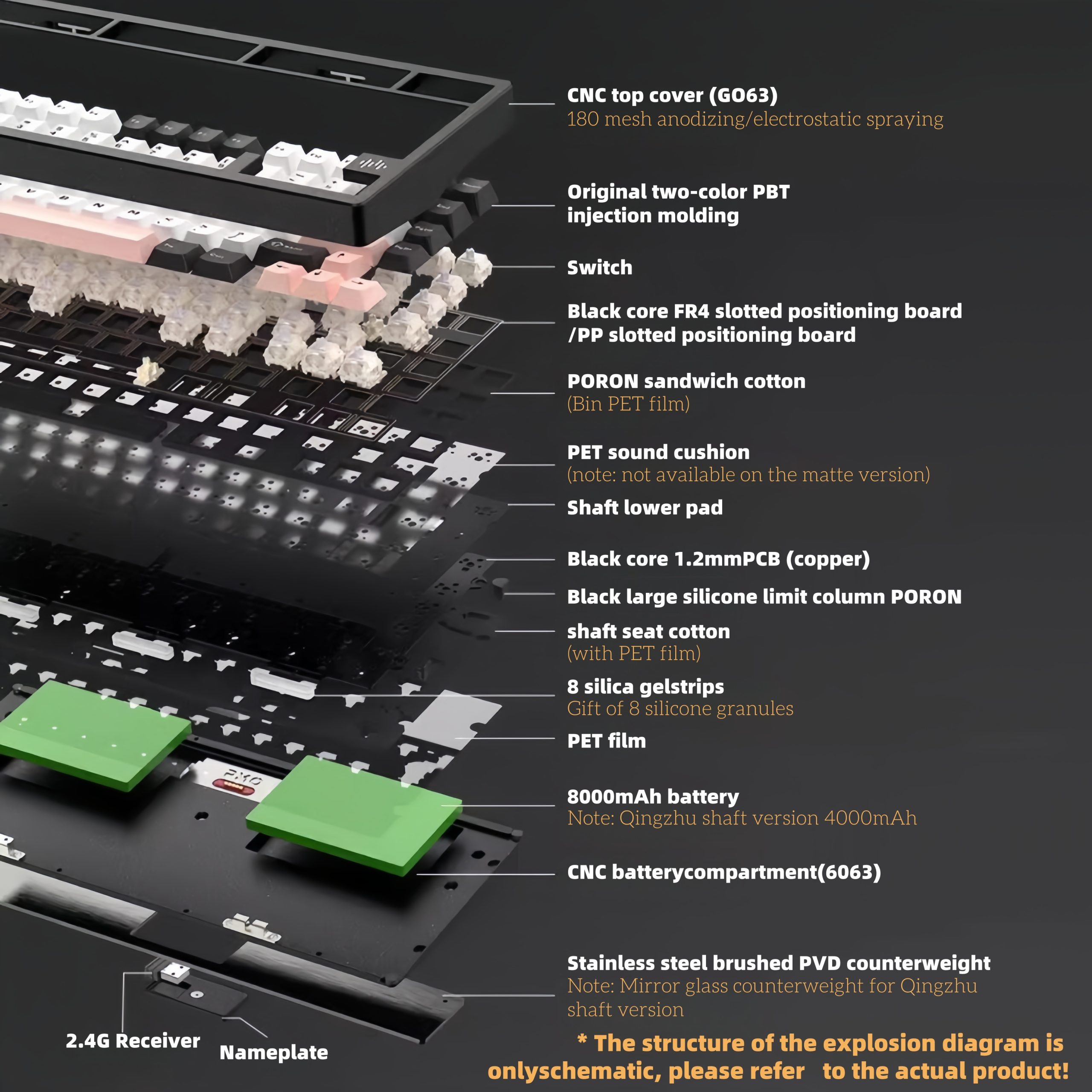

Product analysis

Study the details of product structure and do a perfect job in every production process

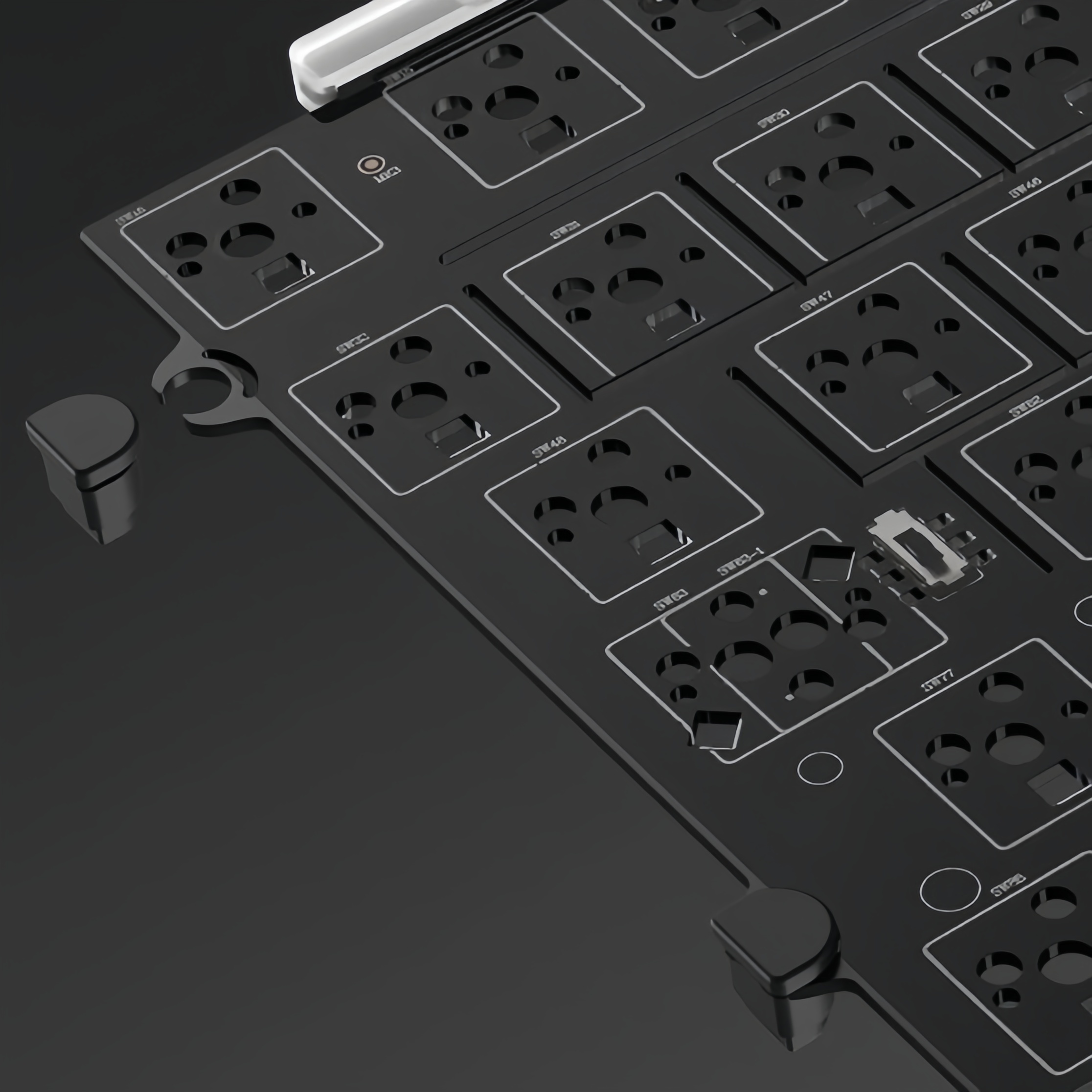

Special PCB slotting area

PCB slotting opens horizontal slots at Gasket. The slotting area and slotspacing of each row are different. The slotting area can be specially adjusted,which can largely maintain the consistency of each row of keys on the keyboard.

Custom hardware plastic
Integrated Switch
seat

The hardware and plastic are integrally injection molded to ensure that thehardware will not fall off if it is inserted by force.The second internal partadopts double clips to ensure that a large number of insertion and removalefforts will not be pulled across, and the service life will be longer (theabbreviation of HM-Huami is printed on the surface of the shaft seat)

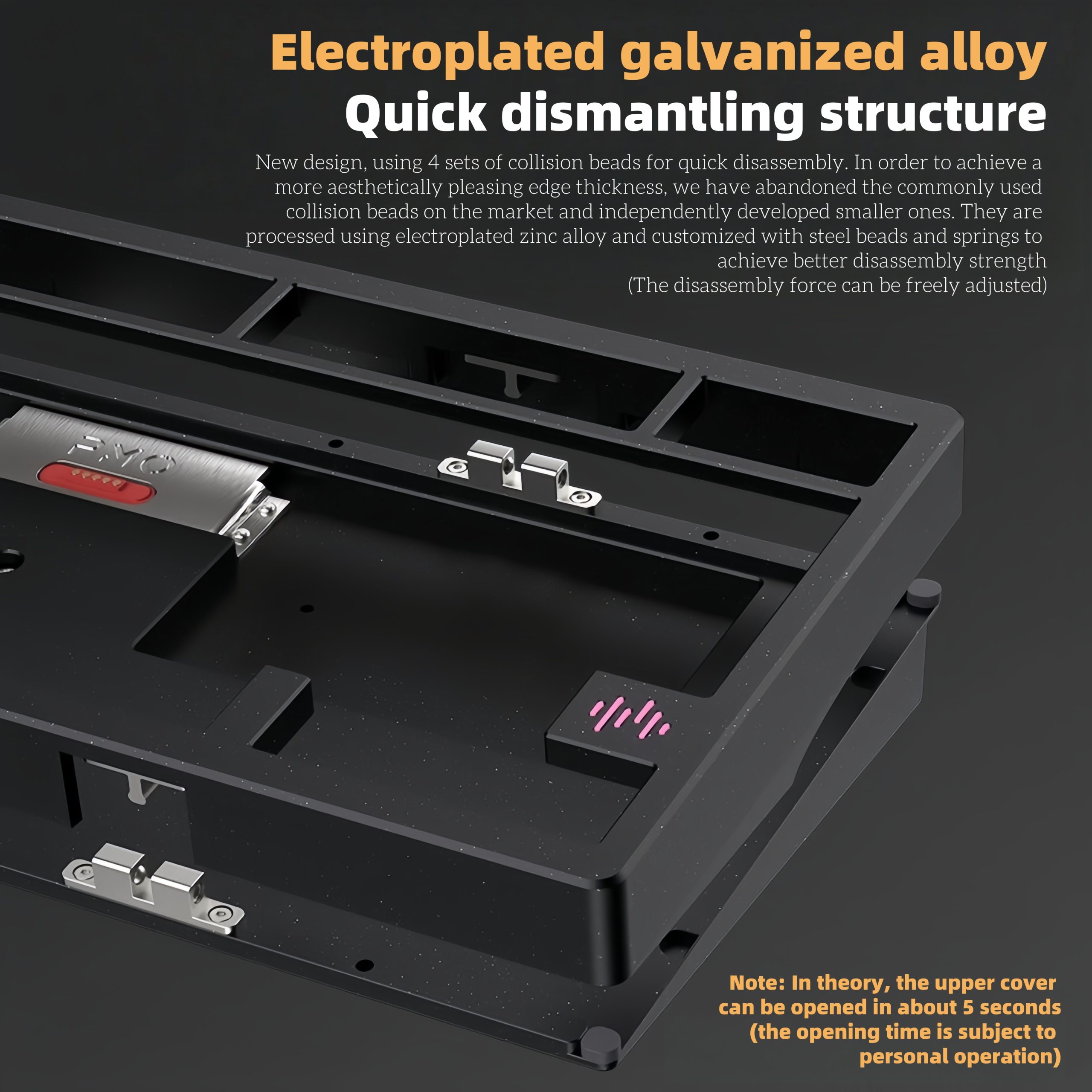

Electroplated zinc alloy quick release structure

The new design uses 4 groups of bead touching methods up and down to realize quickdisassembly, in order to achieve more beautiful edqe thickness, we gave up the commonbead touching in the market and independently developed smaller bead touching methods
And the use of electroplating zinc alloy processing moldingcustom steel ball in the spring, to achieve better disassemblystrength(disassembly strength can be adjusted freely)

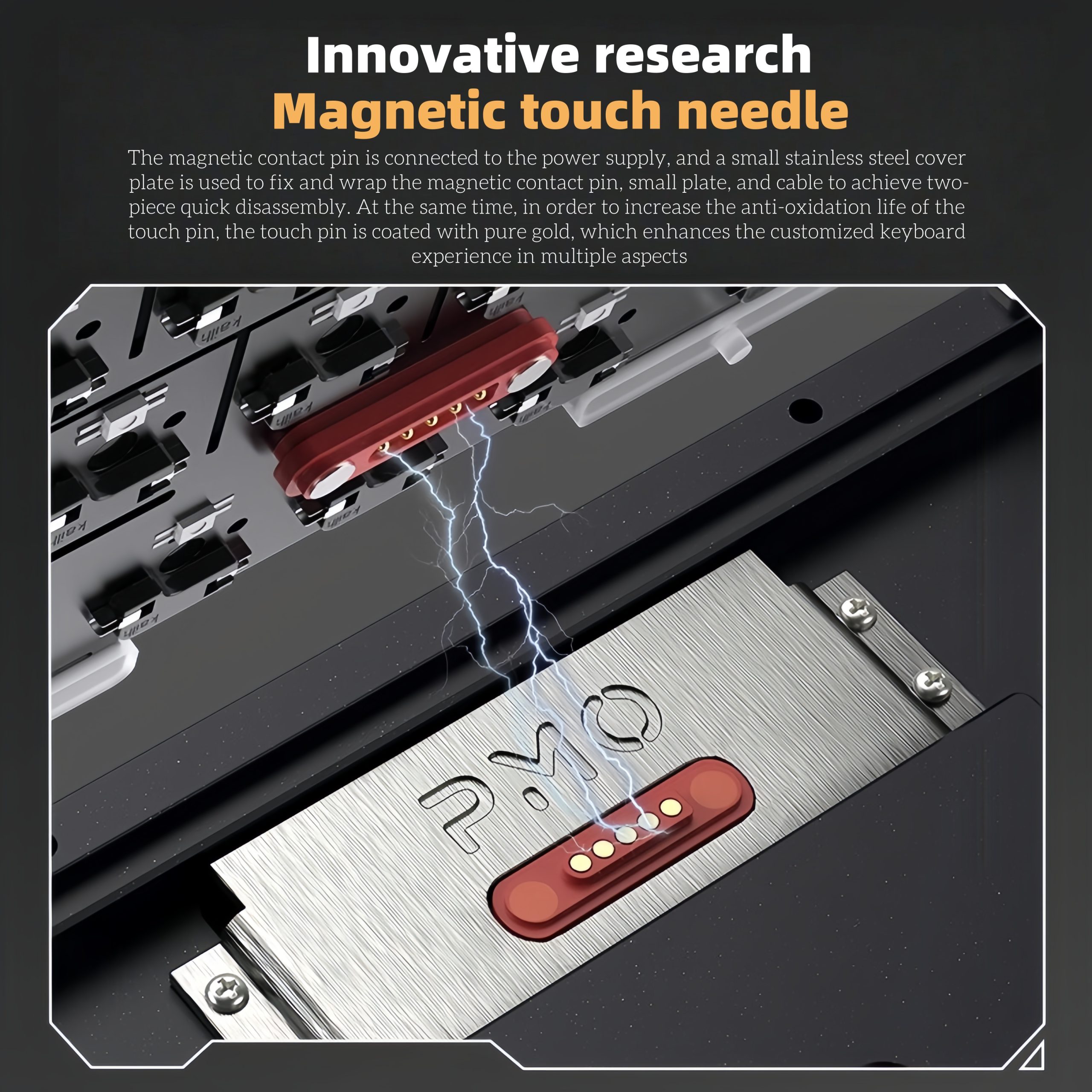

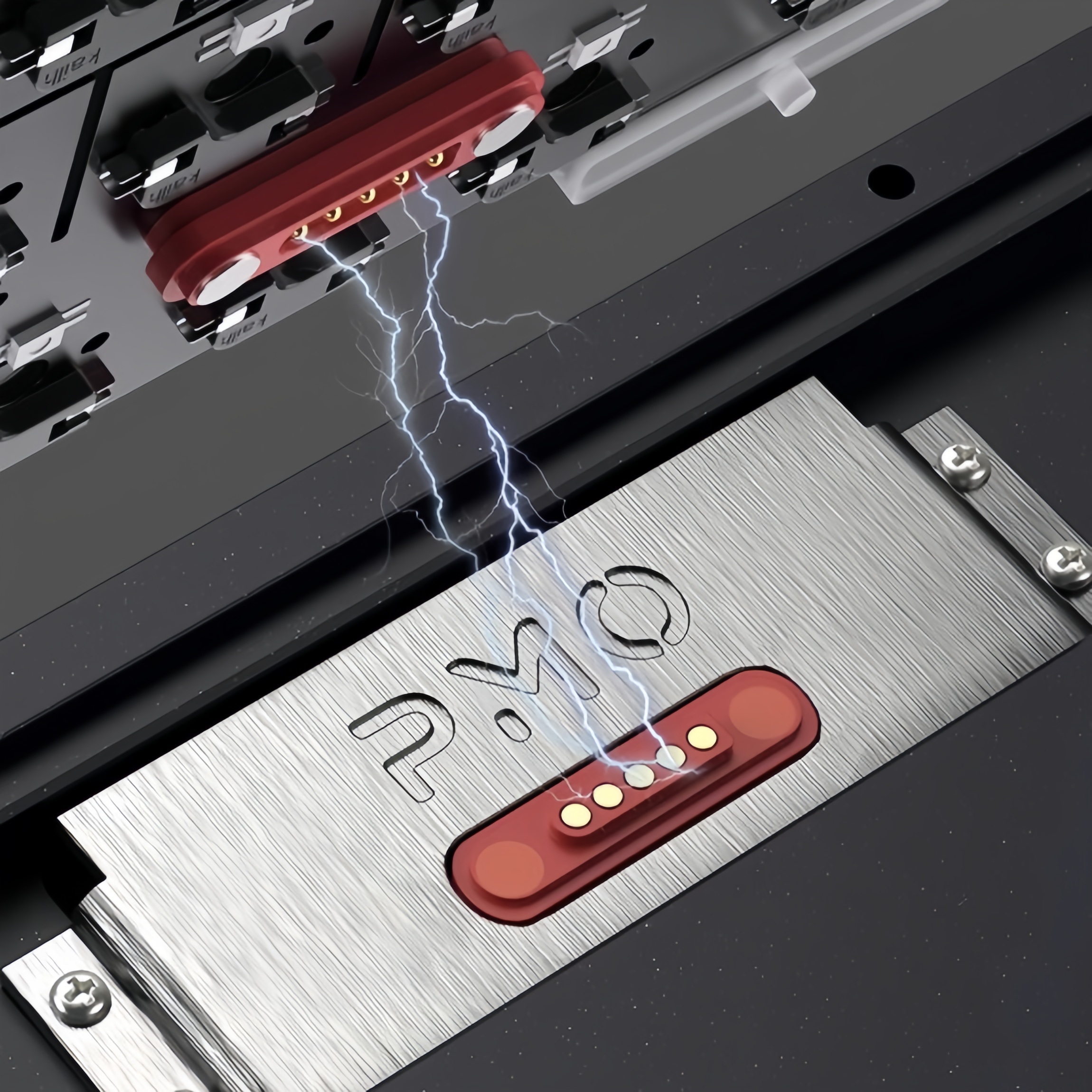

Innovative special researchmagnetic touch needle

The magnetic attraction pin is connected to the power supply, and the small stainlesssteel cover plate is fixedly covered with the maqnetic attraction pin, small plate andflat cable to realize two-piece quick disassembly. At the same time, in order toincrease the anti-oxidation life of the touch needle, the touch needle is plated withpure gold to prompt the customized keyboard experience in multiple directions.

Epoxy Resin Spraying Process

Epoxy resin spraying process, particle size 30 microns, adding titanium white glitterpowder, uniform spraying after high temperature curing molding, so that the hand feel witha sense of sand at the same time to ensure that the surface is smooth and no depression
Do visual smooth, touch matte

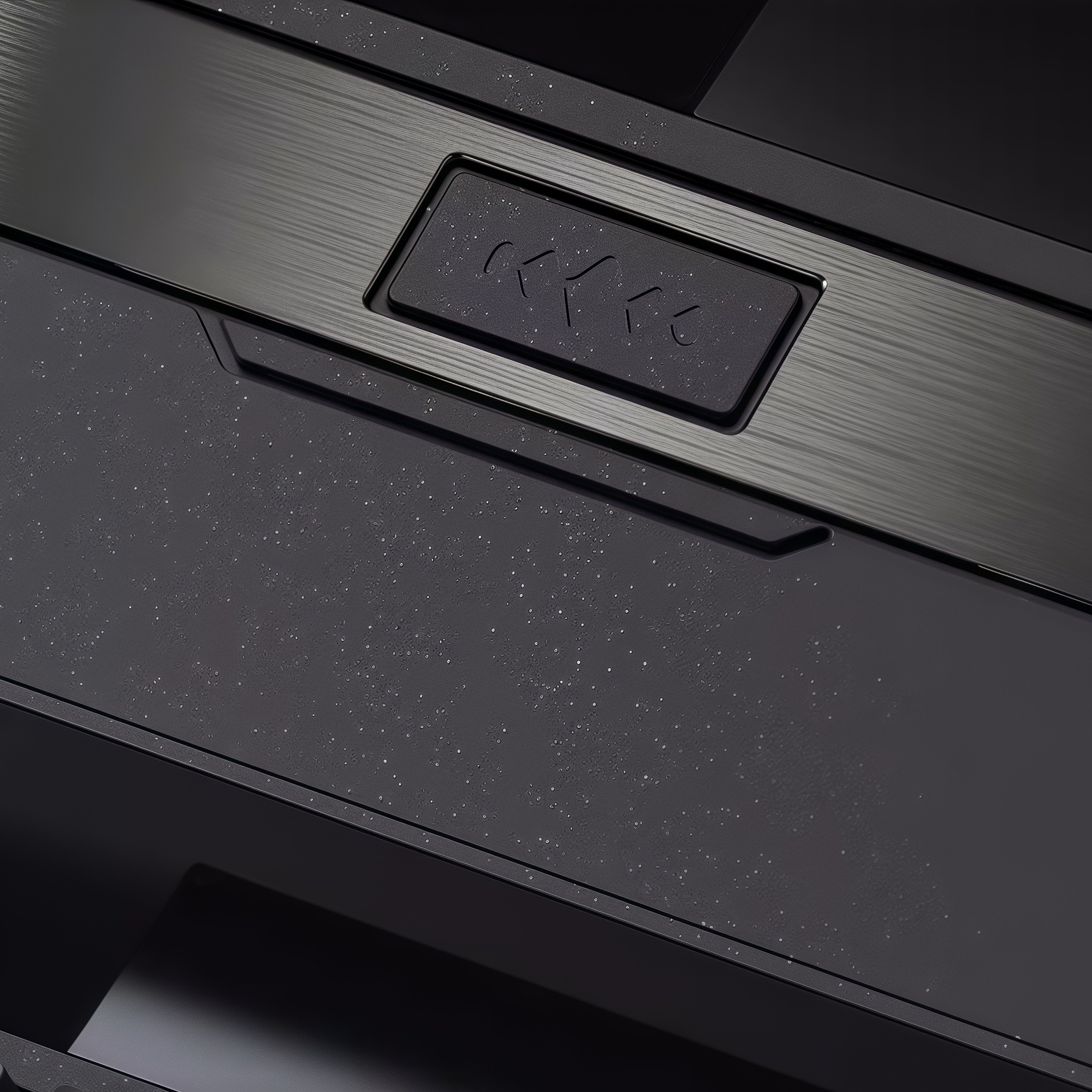

Counterweight
nameplate
storage bin

In order to suppress keyboard resonance, stainless steel brushed PVD/mirrortempered glass counterweight is used at the bottom and CNC slotting design iscarried out on the bottom shell of the battery compartment,hidden magneticsuction 2.4G receiver storage compartment is added, and CNC slotting inside thenameplate and LOGO design on the outside are added.

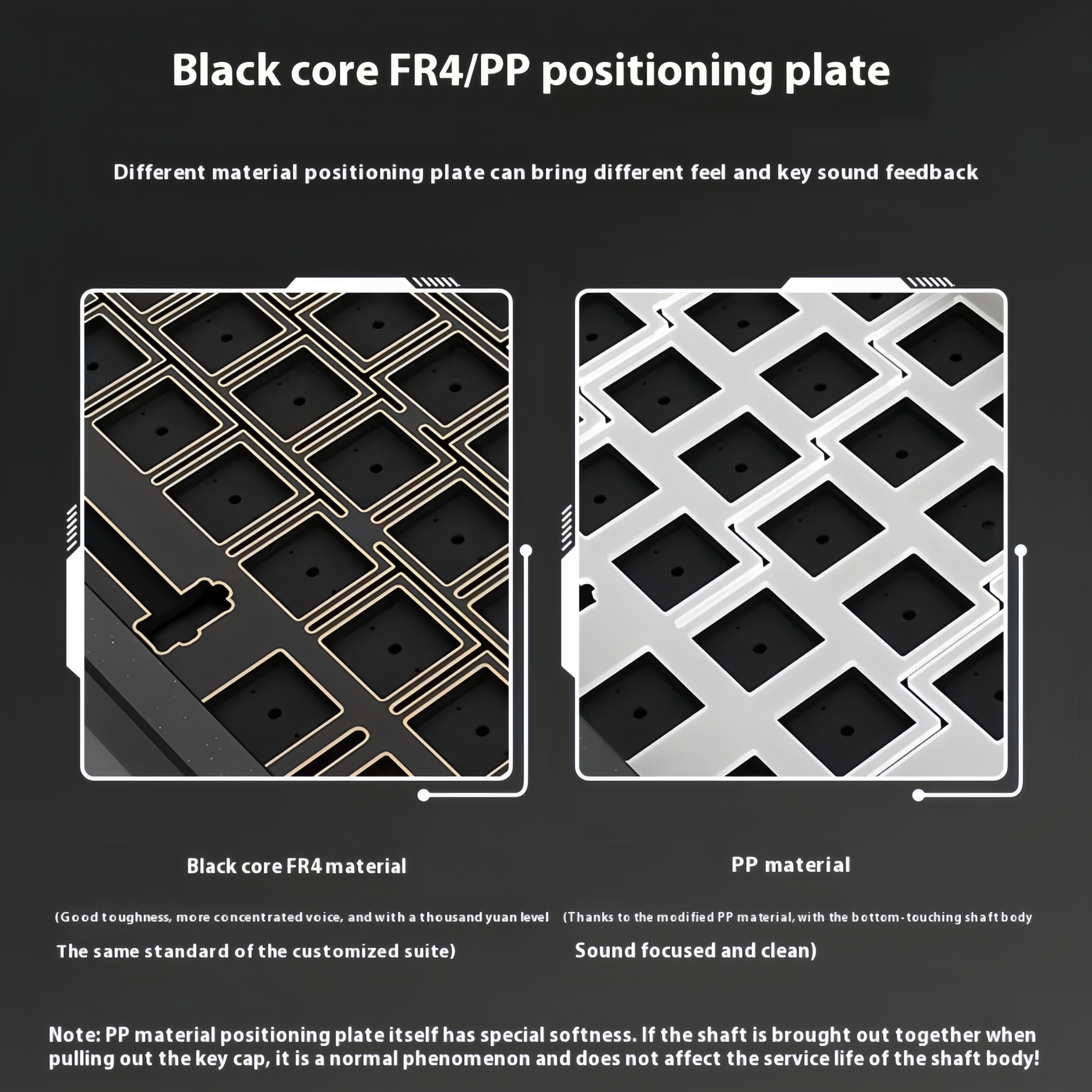

Black core FR4/Pp
positioning plate

Different material positioning plate can bring different feel and key sound feedback

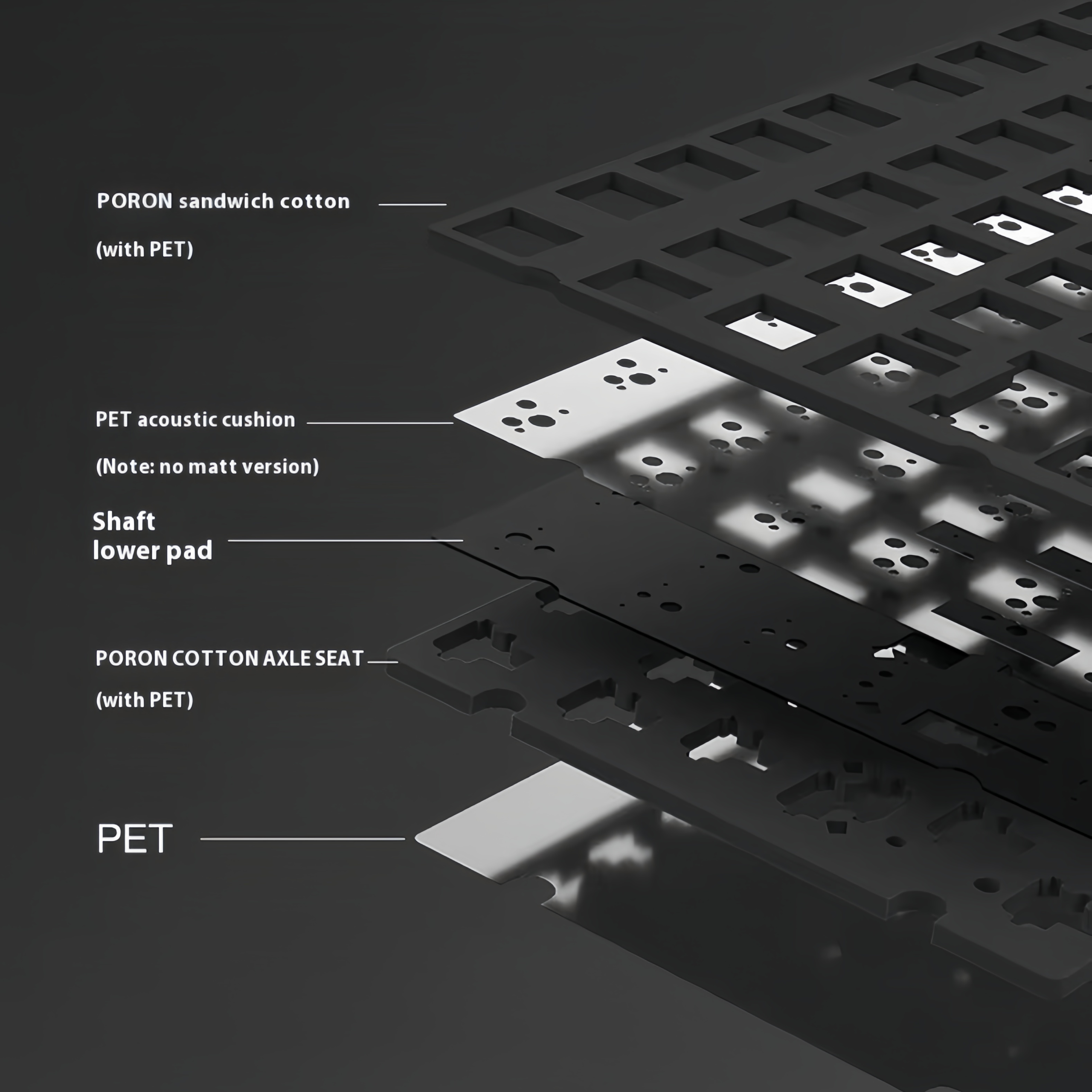

Quadruple Muffling Fill

Five-fold silencing blessing (matt version four-layer silencing)effectively filling the internal space with pure aluminum shell andPCBGASKET structure to create flagship typing sound

Comfortable input experience

The ergonomic assembly line keylayout is adopted to adaptto the human hand tapping the keyboard movement arc,which is smooth and comfortable for a long time.

Three modes of connection

Can be in the cable/Bluetooth/2.4G three connection mode offree switching, to meet the needs of a variety of work and
entertainment.

8000 mA super battery life

Equippedwith 8000mAhlarge-capacity battery, lowpower chip life more durable, without frequent charging,experience more smooth.

Green bamboo switch version is 4000mAh

75% Columns 81 Key Layout

Part of the function keys of the complete keyboard arereserved,and the appearanceis simple and compact. Both thecolorvalue andthe use experience are characteristic.

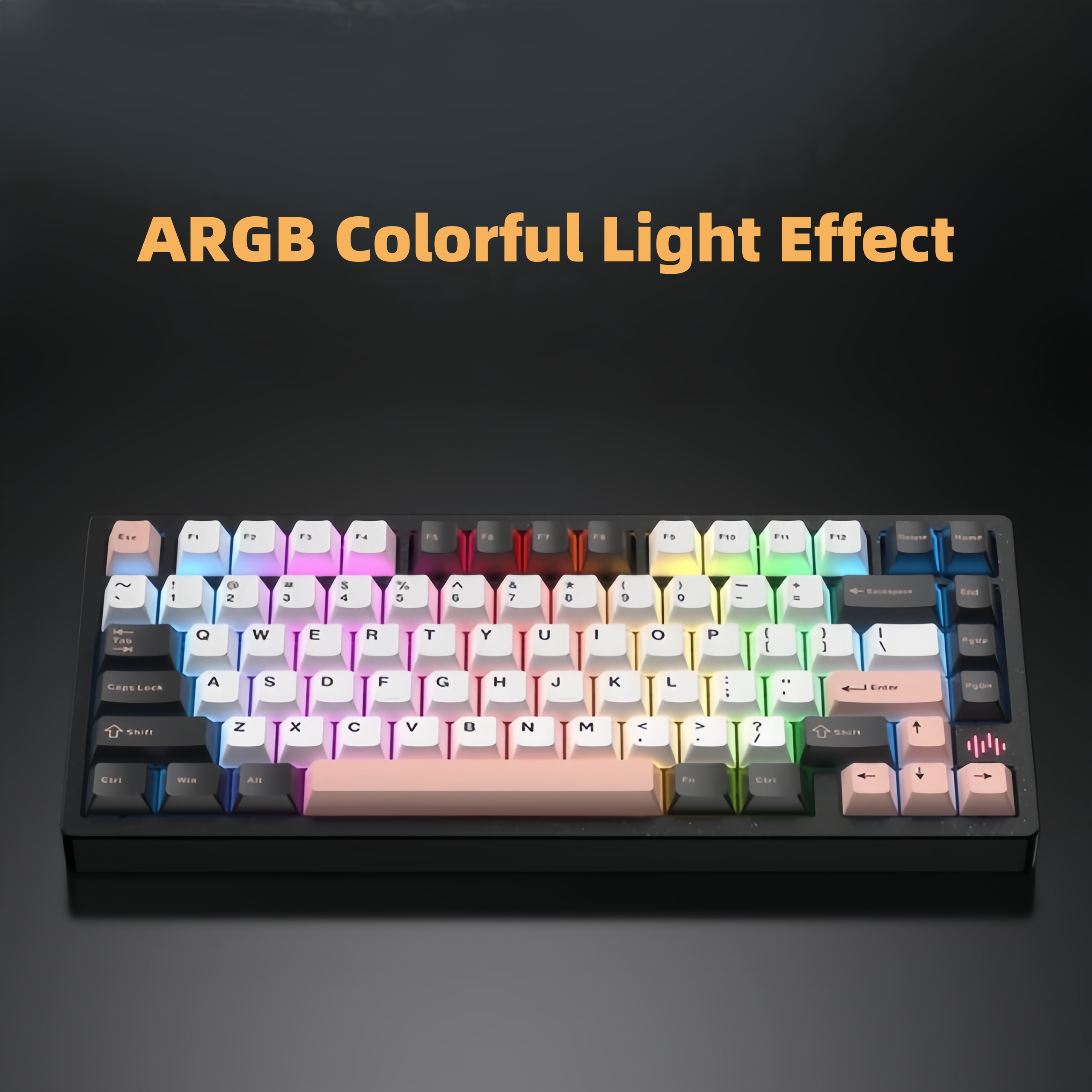

ARGB colorful lights effect

The organic combination of metal and light creates theambilight in front of you. More than 1600 million light colors,with high visibility and visual appeal, let you enjoy the dreamysplendor at your fingertips.

Other parameter display

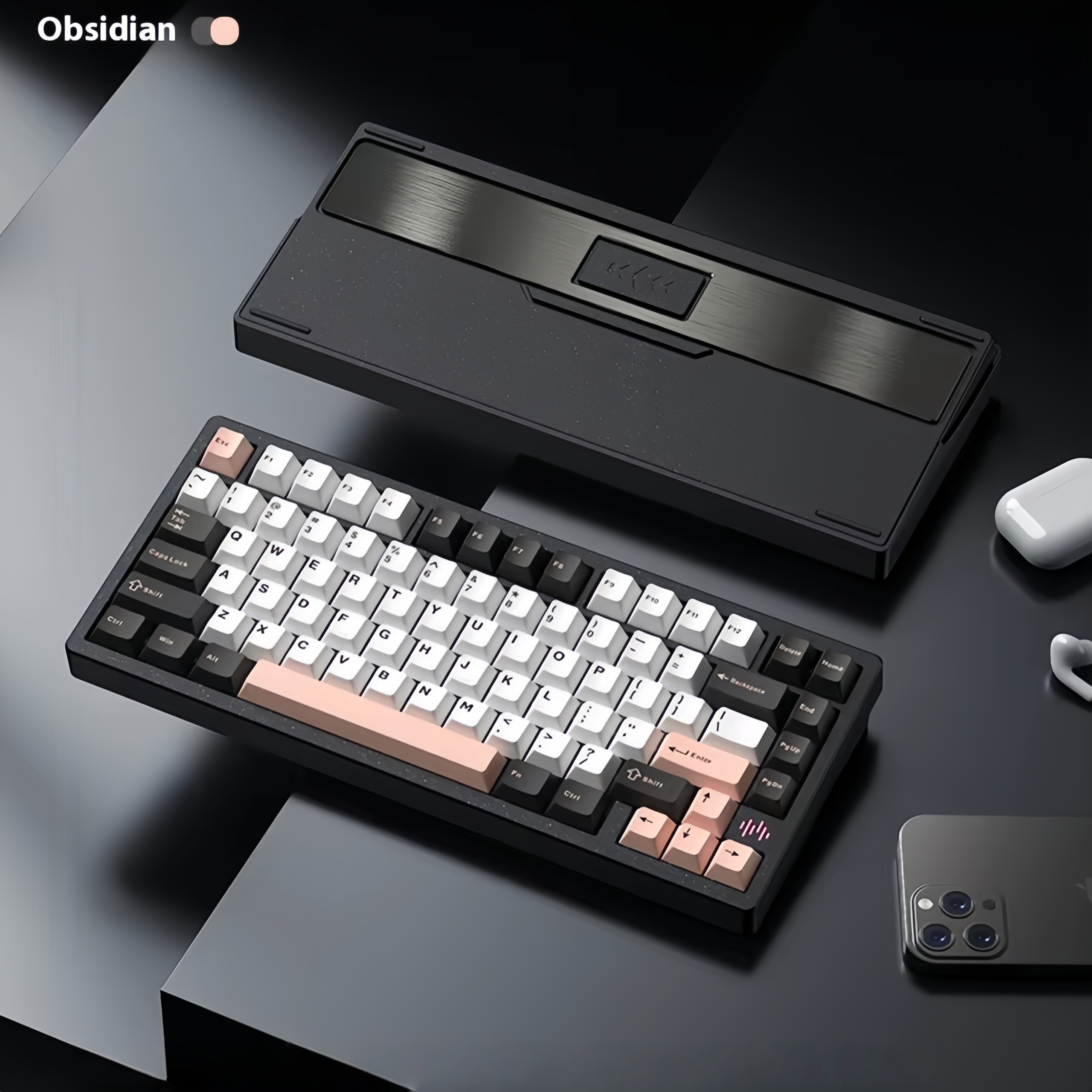

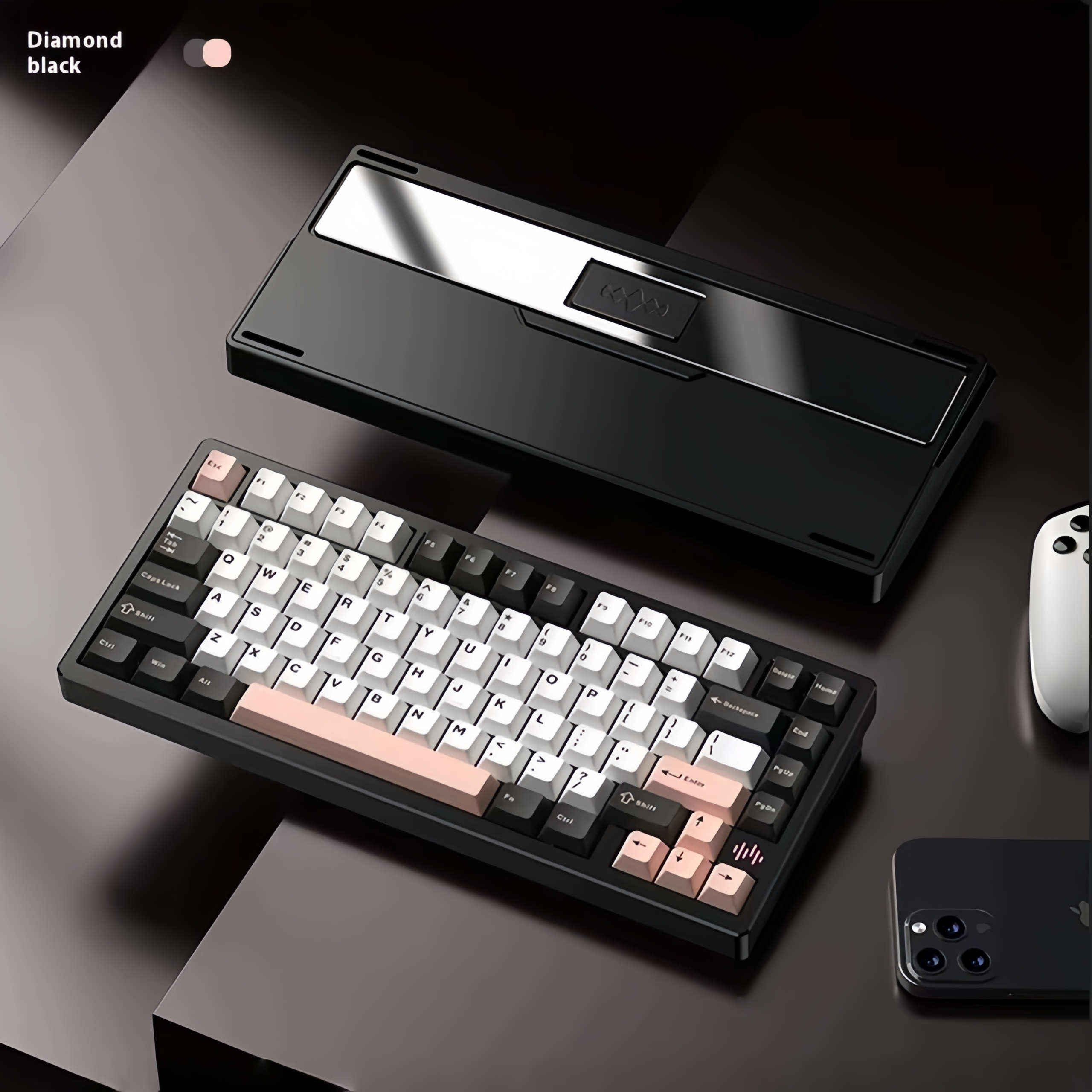

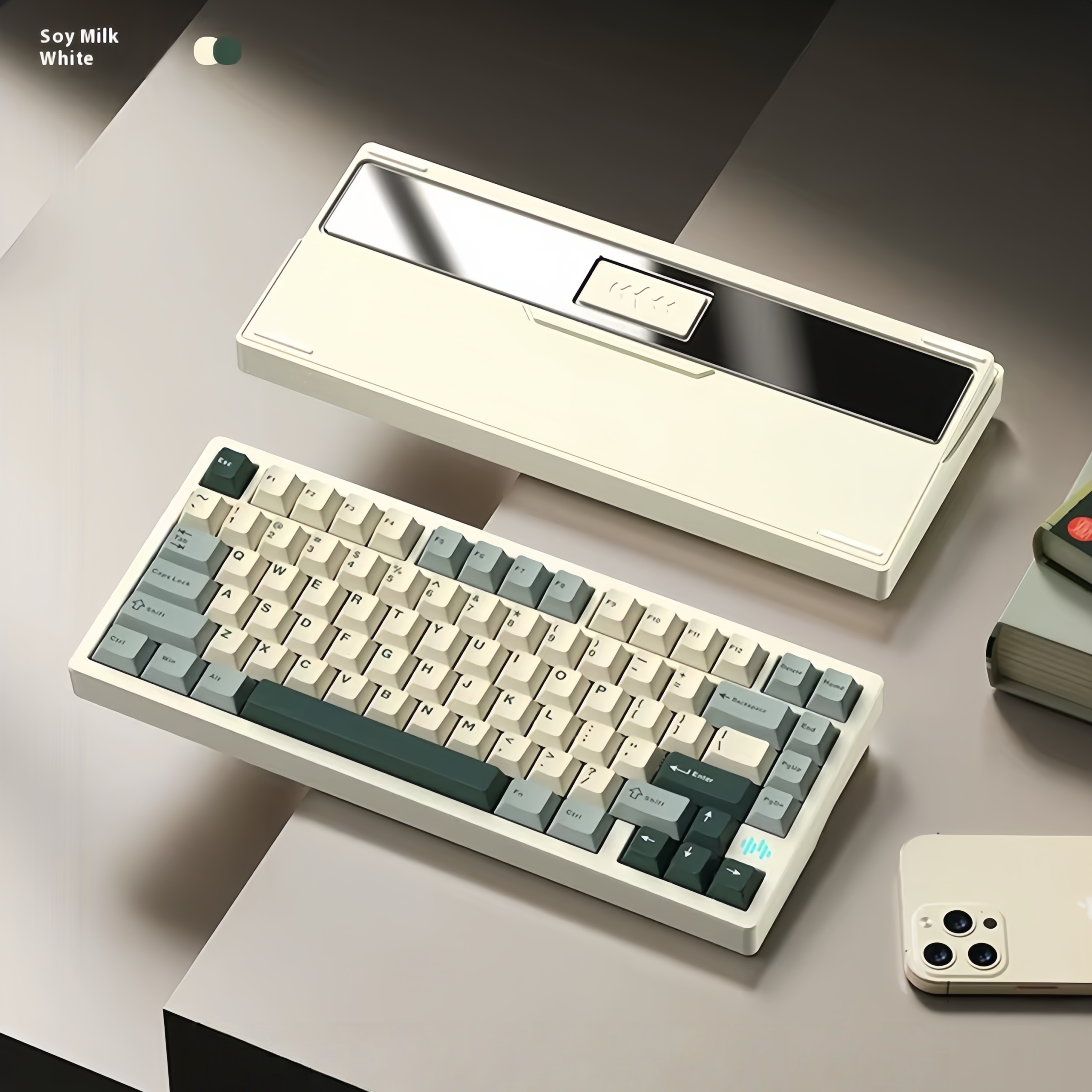

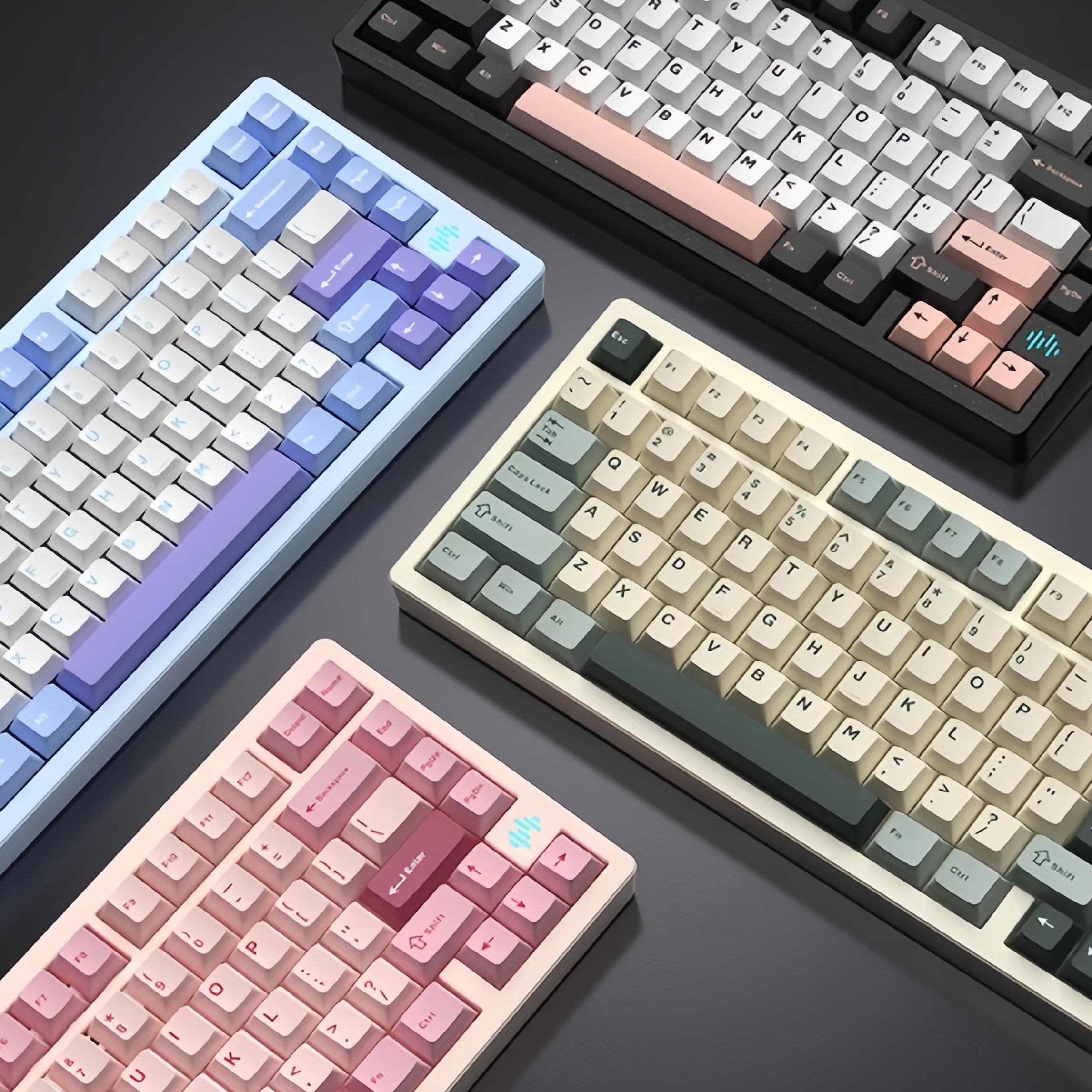

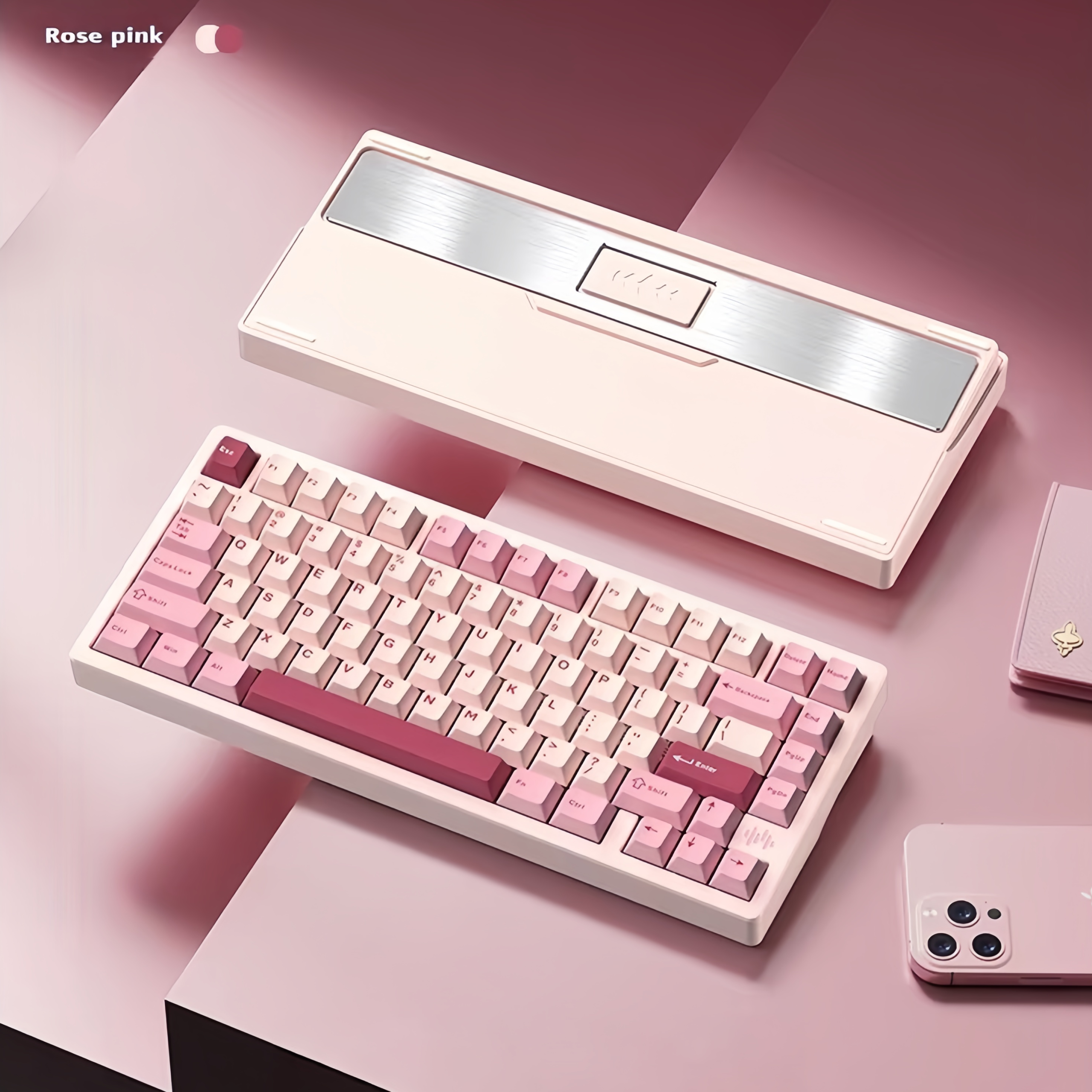

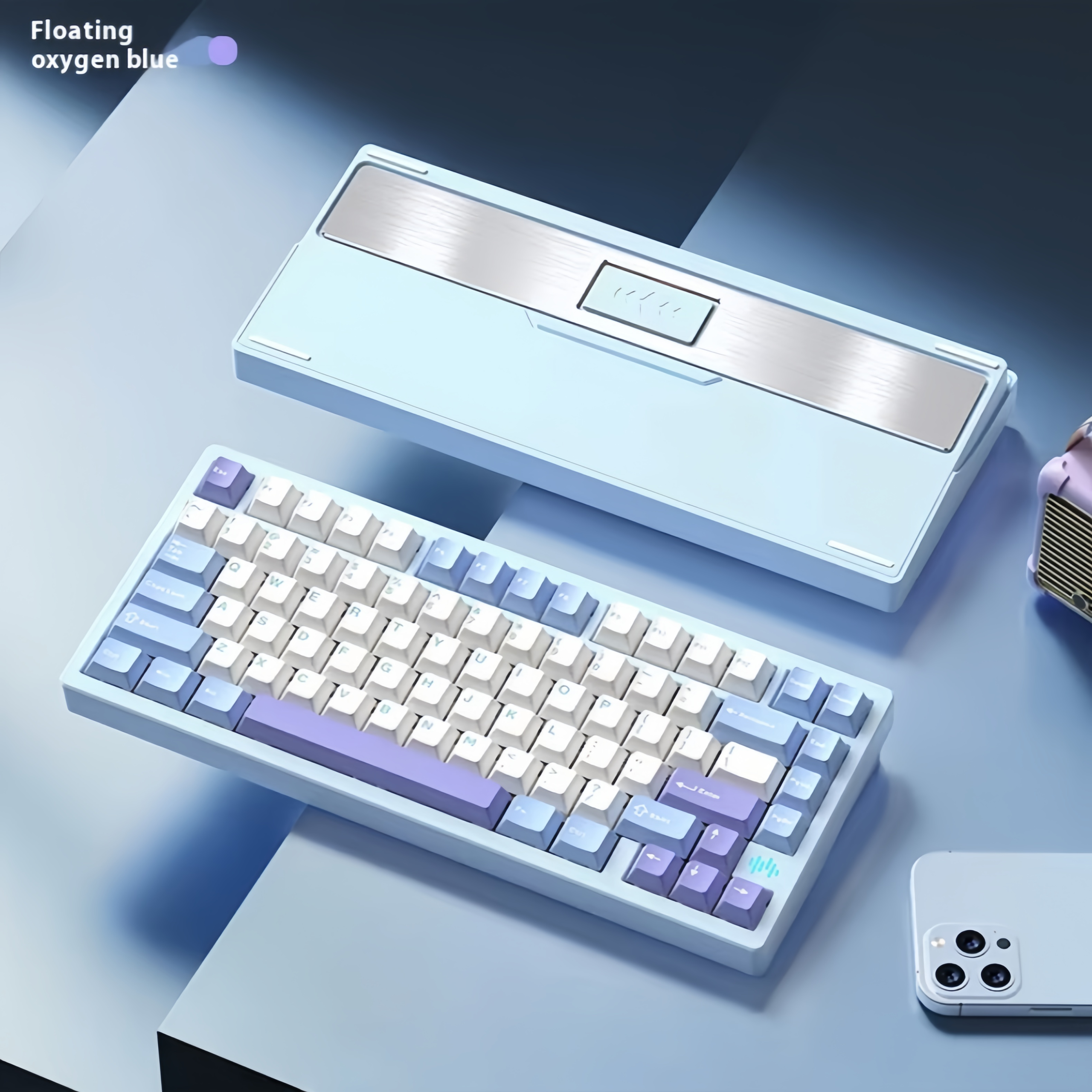

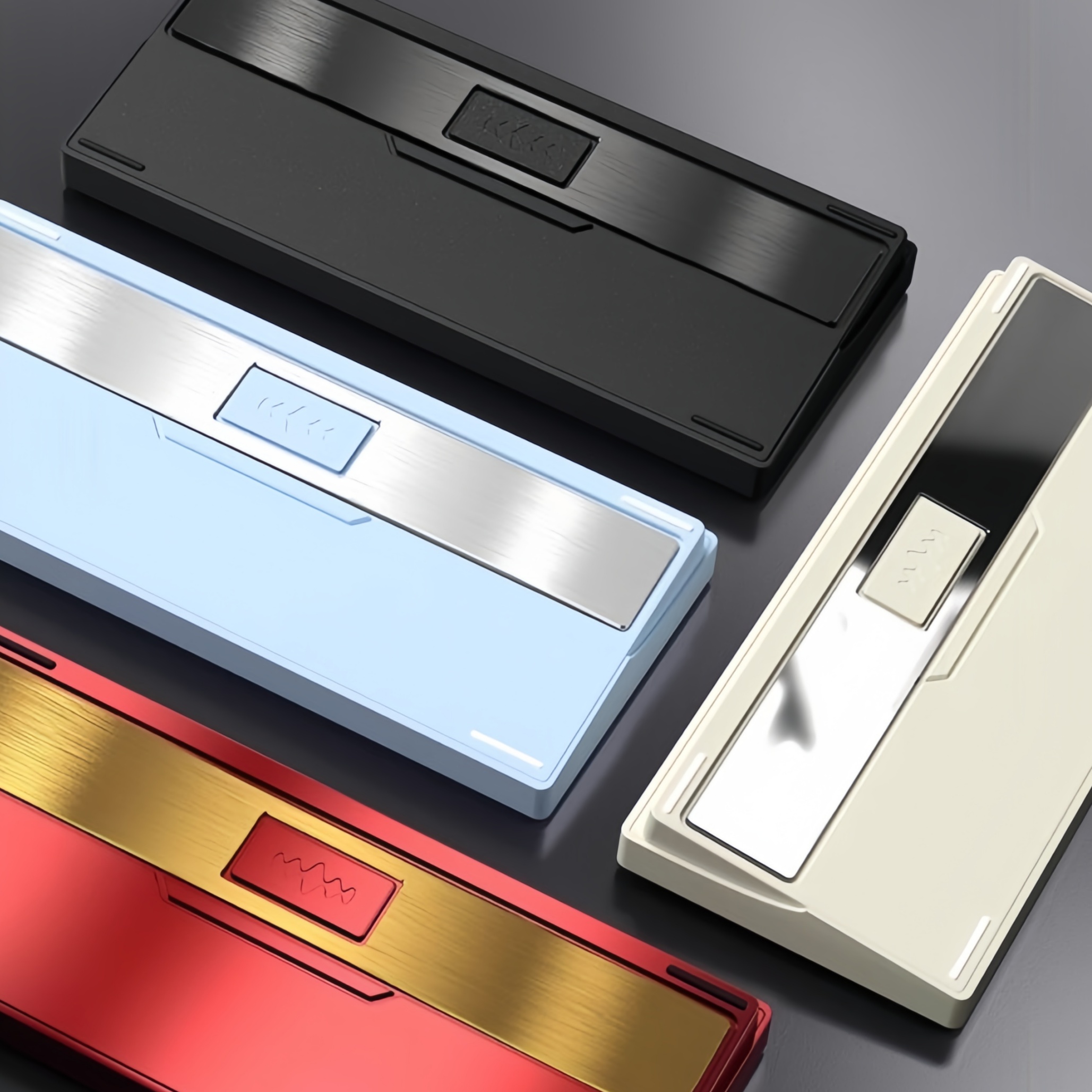

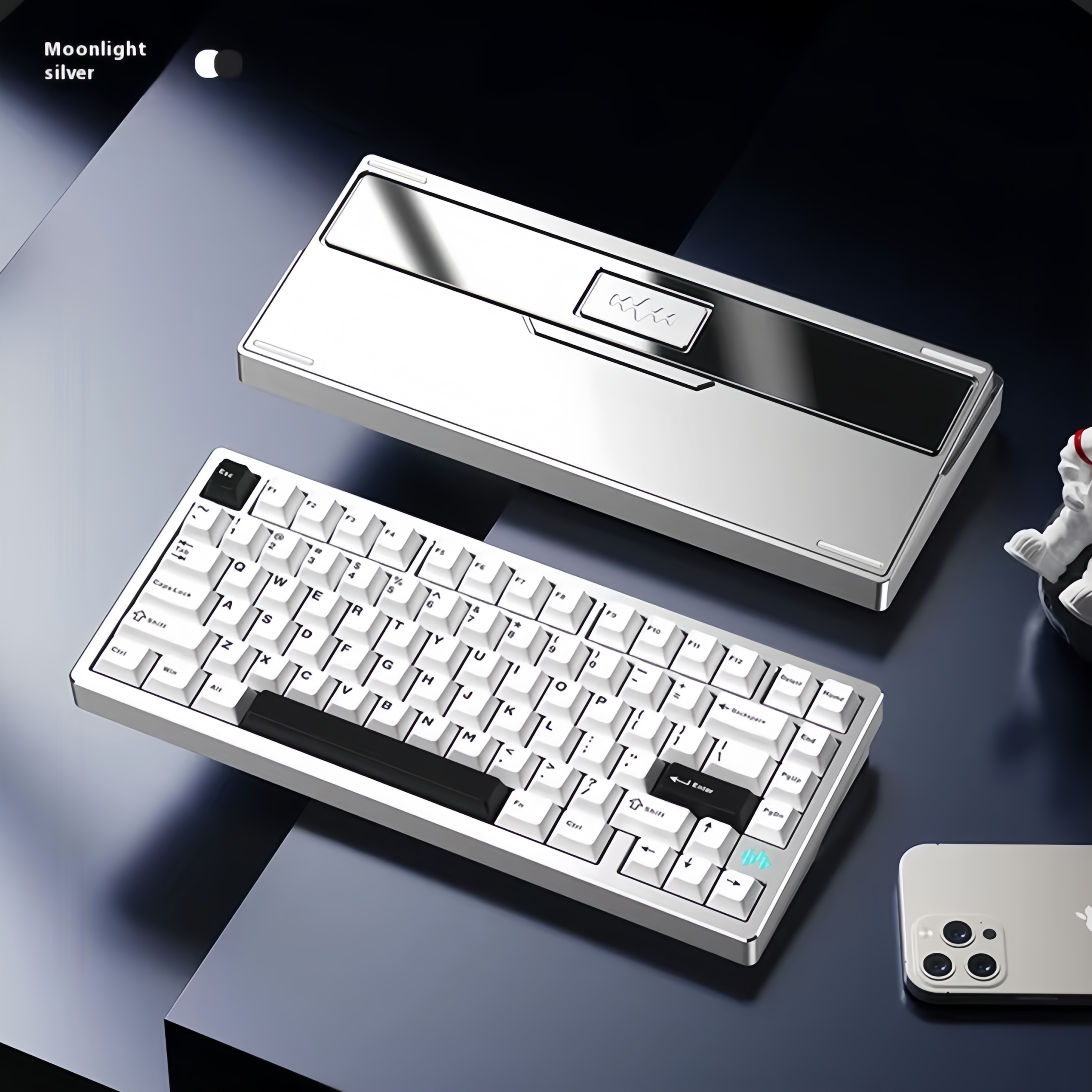

All colors display
